Monday 21st February 2022

Keith discussing progressAnother very short update this week, but one that reflects in picture style (thanks, Sam) the important work that has been carried out on 5643 at Bury in the past weeks.

The valve liner bore is adjusted by a technicianLast week saw the valve liners being re-bored to cure anomalies. As you will see, it has been necessary to remove the front buffer beam and bridge plate above the slide bars.

View of the borer in placeA view of the other end of the borerDetails of the new diameters of the valve liners have been conveyed to Tyseley Locomotive Works where the valves, with newly fitted rings, should be ready at the end of next week.

That’s all for now – we hope a more normal service will be resumed next week!

Monday 14th February 2022

A very short update this week.

The canvas ready to be unpackagedThe most noticeable progress is with GER Royal Saloon No. 5 where the new canvas was magically uplifted on to the roof.

Once liberated from its packaging, the canvas was carefully spread the length of the roof, whereupon it was discovered that it was the wrong way up!?! After a certain amount of cursing (!), the issue was rectified and the canvas length trimmed roughly to size here. The canvas spread over the roofThe idea is that the canvas should be allowed to settle for a few days before being bonded to the roof with bonding paste – perhaps a week on Wednesday when we have all the necessary implements assembled.

The other noticeable progress is on Caliban‘s boiler where Russ, with assistance from others, has removed around two thirds of the tubes.

Another working party took place at Bury last Thursday when George joined Keith, John and Sam where work included splitting the crossheads on 5643. Keith (Happy Birthday, today!) is going to Bury tomorrow to undertake some more work on the locomotive. Incidentally, some of you will no doubt have seen a feature on BBC’s North West Tonight last Friday evening regarding a new young engineer being taken on by the East Lancashire Railway – and prominent during the filming was none other than 5643!

Monday 7th February 2022

There has been further progress on the overhaul of Great Eastern Railway Royal Saloon No. 5 in the last week. The roof received a coat of grey primer on Wednesday, in readiness for the new canvas to be laid on the roof. John Dixon with upper and lower sections of one of GER 5's gas lamp housingsThe gas lamp housings have received further attention with John Dixon seen here marrying a restored top to the lower turret section which inserts through the roof from below. Like the upper element of the housing, the turrets are also in need of repairs, which are now in hand.

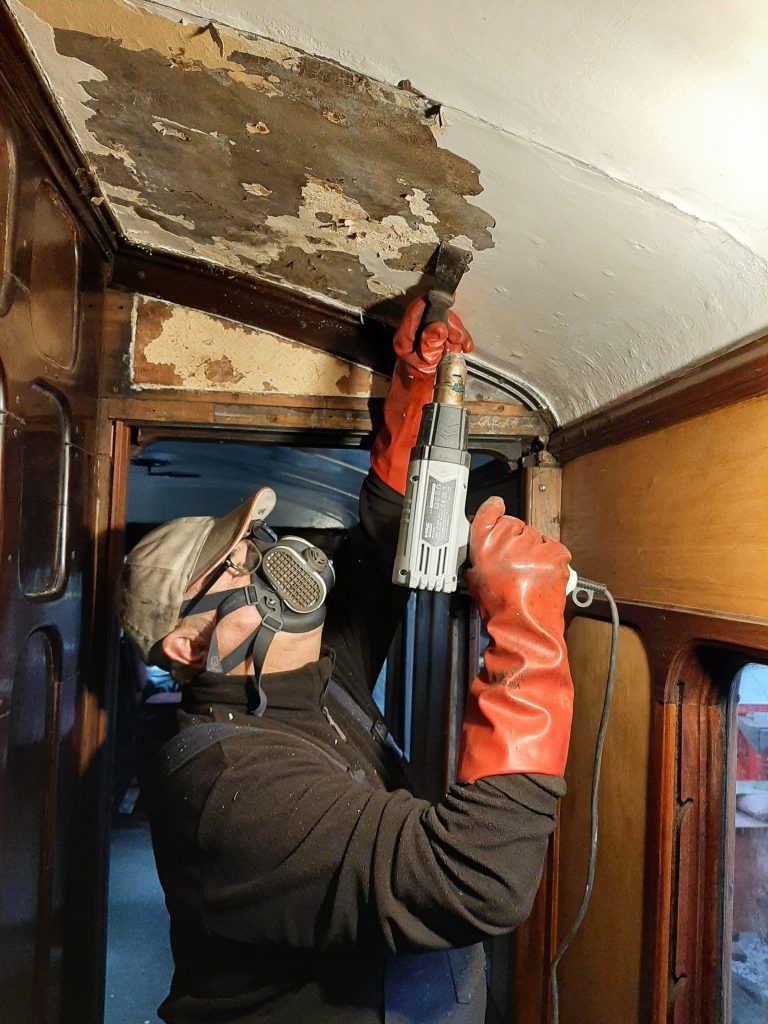

John Davis removing paint from GER 5's corridor ceilingInside the coach John Davis has been removing old paint from the corridor ceiling.

Fred removing paint from one of the rain stripsFred has continued with the job of removing paint from the roof rain strips.

Roger giving Fluff's horn a coat of paintElsewhere, Roger is seen giving Fluff‘s horn a coat of paint.┬áKeith has been making lots of noise inside Wootton Hall’s tender tank and finding a few additional holes in the process! Ade has also been competing for noise levels whilst modifying Caliban’s brake blocks.

Matt Anderson at Embsay has provided an update on some of the running repairs that are being undertaken on Cumbria during its period out of traffic whilst undergoing its statutory boiler examination:

old and new start platesNew star plates have been made and fitted to the big ends; the previous star plates had come to the end of their lives and were allowing the big end wedge bolt to loosen when in service.Newly fitted star plate

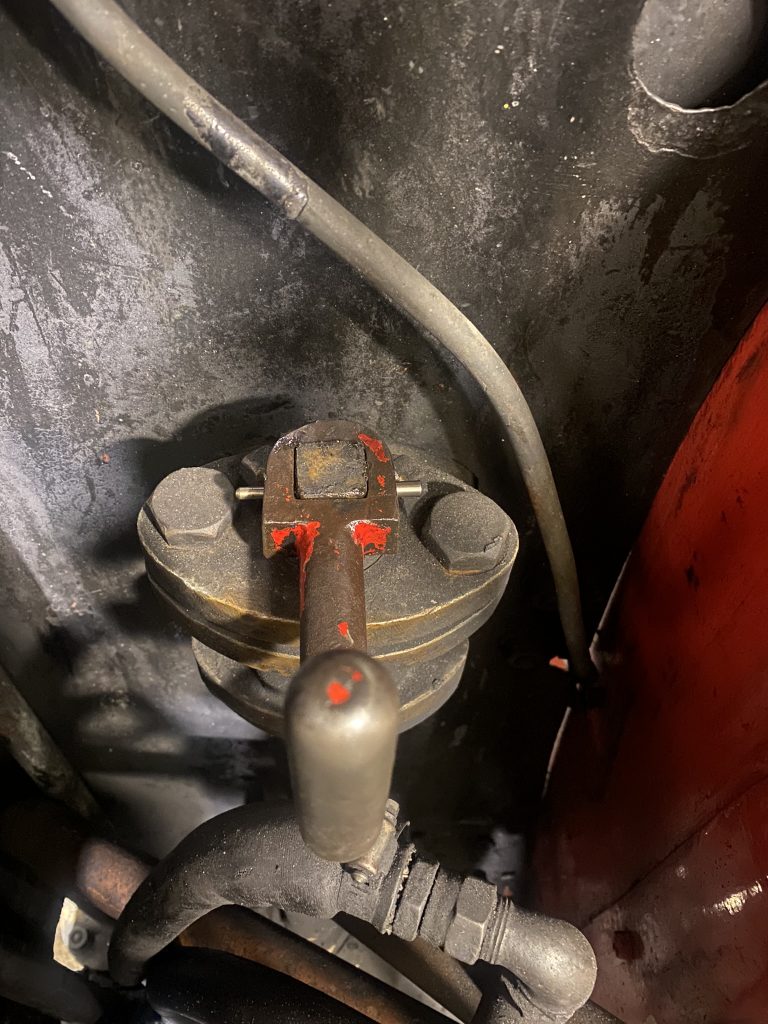

New taper pin in fireman's side water valveA new taper pin has been fitted to the fireman’s side injector water handle.

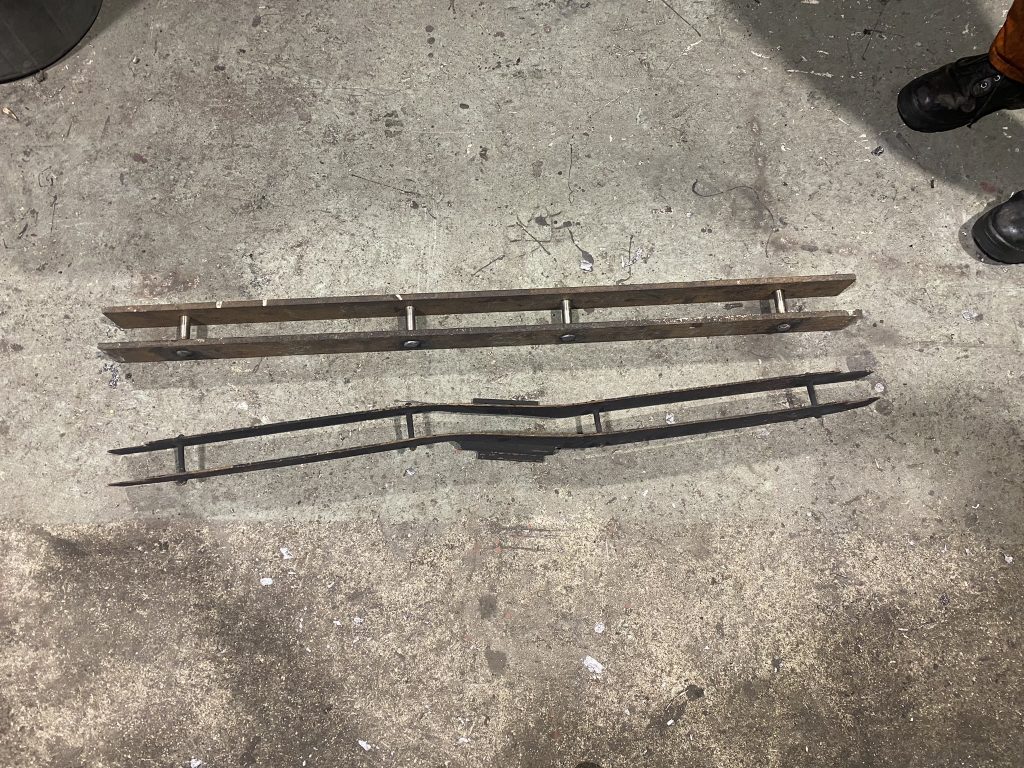

New and old smokebox door cross barsThe smokebox door cross bar has been replaced after the original had become warped.

Cumbria's smokebox door receiving attentionThe smokebox door has been removed and is seen being sanded down by Embsay’s chairman, Rob Shaw, before being given a fresh coat of paint.

Finally, one of the cab windows has been repaired and the windows have been made to fit properly.

Thanks to Matt for the above detail and for the photos.

Finally, last Thursday Keith delivered 5643’s valves to Tyseley Locomotive works in readiness for new rings to be fitted once the valve liners have been re-bored. Keith is heading to Bury this next Thursday where a working party will take place to split the crossheads and remove the pistons for examination.
